Rear Seat Pan Bolt Hole Locations on a BJ7

Share this page

P

PeterB

Senior Member
Country flag
Offline
Does anyone have the measurements for where the 8 bolt hole locations are for the 2 rear seat pans in a BJ7? It looks as if someone that previously worked on the car cut the rear seat pans crooked to match some weird holes. You can really tell when I went to reupholster them. I have since bought new rear pans and I would like to weld up the holes and make new ones. Thank you.

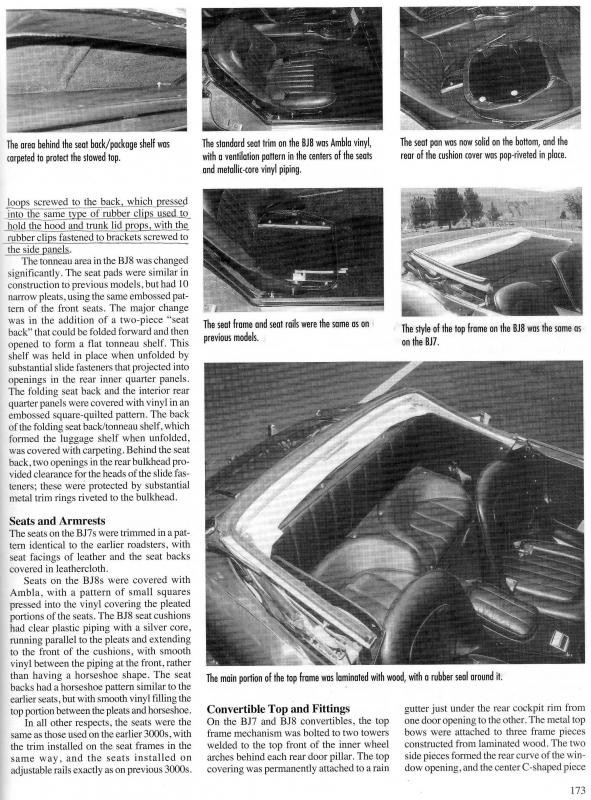

Peter this is the best picture I have. It is from Anderson & Moments Restoration Guide.
If you can't tell from the pic there are screws at each rear corner radius and then also a screw at each front corner which is down over the front edge of the seat. These front screw screw into the vertical bulkhead.


Attachments

  • img477.jpg
    119.7 KB · Views: 116
