TR4/4A Close up pics of your TR4a fuel lines

Share this page

T

tdskip

Yoda
Offline
Hi guys - picking at the TR4a IRS again and need some help on the fuel lines. Specifically, I am looking for correct routing of the fuel lines into the pump and then from the pump to the carbs.

Thanks!

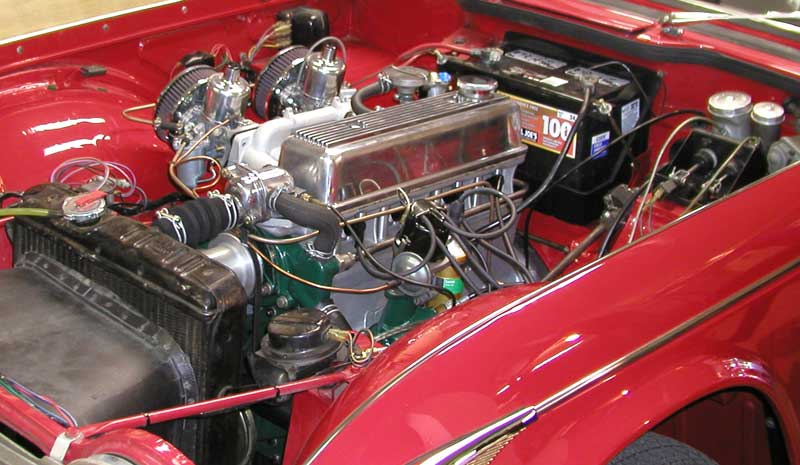

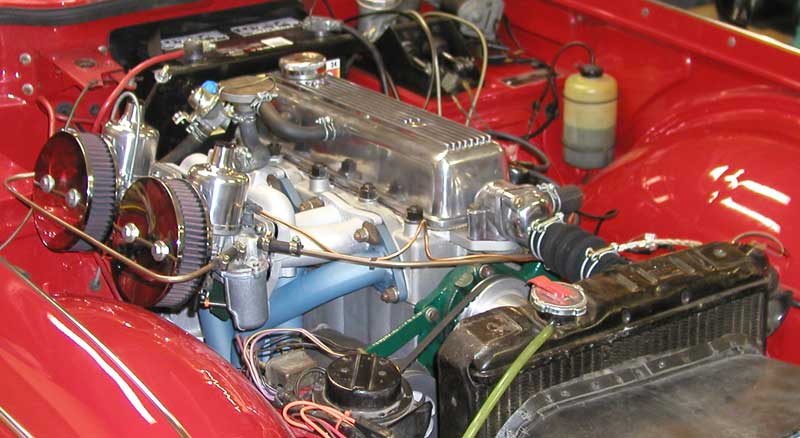

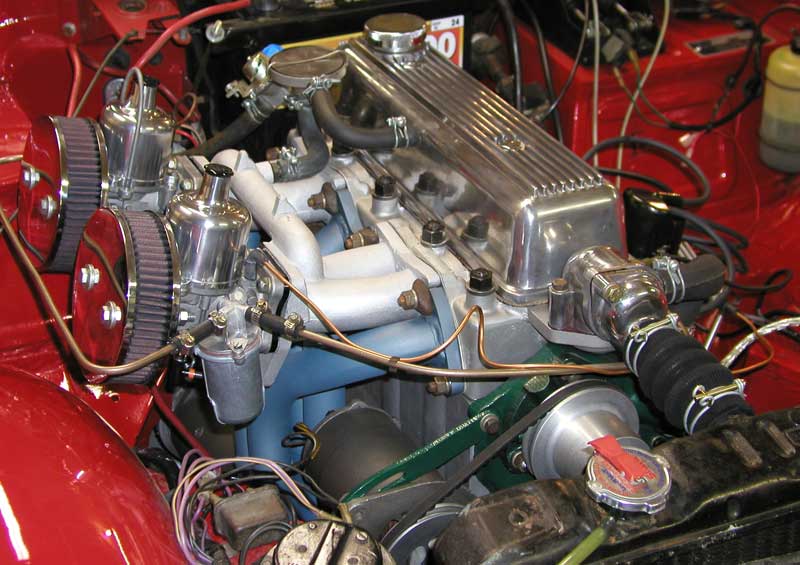

I think these are correct, though not original. The tube between the carbs should be clamped to the air cleaner bolts, and ignore the loop in the vacuum line.


Attachments

  • 24805.jpg
    58.1 KB · Views: 383
  • 24806.jpg
    53.9 KB · Views: 363
  • 24807.jpg
    67.2 KB · Views: 371
Thanks guys - very much appreciated.

She has SUs, so the end point is a bit different but not much. It looks like there is a single metal fuel line that makes the run from the pump to the bowls. I don't have that section so I'll have to fabricate one.

Nice cars guys!

Tom,



As Darrell said the carb to carb section should clamp to the air filter bolts, but I routed mine underneath similar to Jim's pictures as I used Weiand air filters instead of the paper elements.

Scott
